12-channel DSP processor
PC/Android/iOS compatible
Built-in Bluetooth 5.0
Clip light
31-band parametric equalizer
Note! when you order this product, you will also receive the DD Audio DSI-3 Remote remote control in addition to the DSP.

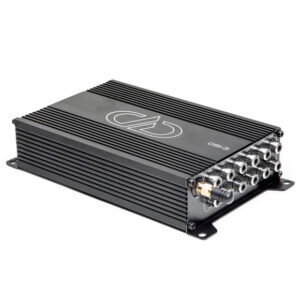

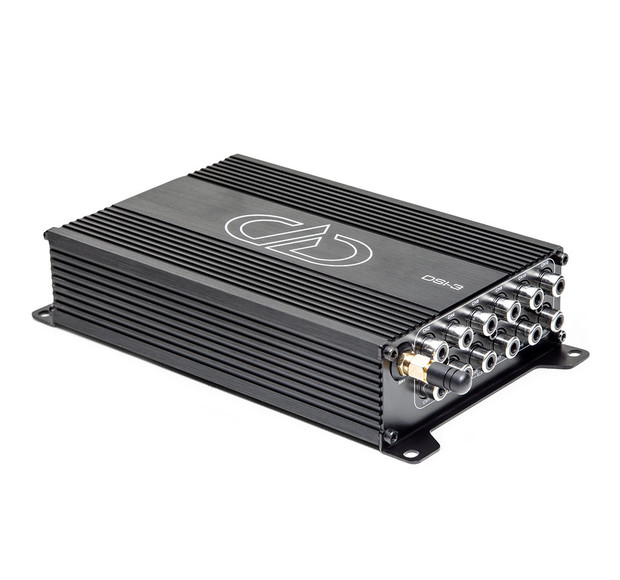

The DD Audio DSI-3 is a DSP that can be adjusted with Android / iOS devices, as well as a PC. Amazing features and 12 output channels..
The adjustments of this processor can be made with a PC ( USB-B cable ) or iOS mobile devices via Bluetooth ( The device has a built-in Bluetooth receiver ). In addition to adjustments, you can also use the Bluetooth connection for audio streaming. ( NOTE! The iOS application is not available in the EU area ).
The DSI-3 audio signal processor has been significantly improved compared to the previous DSI-2. Several updates have been made to the device, based directly on customer feedback. Improvements have been made to processing power, input channels, output channels, wireless connectivity, installation features, OEM integration and equalizer features.
Signal input at speaker level or line level. The excitation input can be selected either controlled by a 12v remote or to identify the signal as speaker level or RCA level. DD Audio DSI-3 is an excellent device, for example, after the original car player to give a signal to the amplifiers and handle the tasks of the DSP. Or for any equipment when you want a DSP that can be adjusted with almost any device!
By summing the incoming signals, you get the entire sound range signal even if you take it in after the crossover filters. In some original car equipment, it is difficult to find a full sound range signal from single cables, in which case signal summing is a big help when you want to build equipment after it.
The adjustments of this processor can be made with a PC (USB-B cable).
The device has a built-in Bluetooth receiver, which you can use for audio streaming.
Remote control unit with volume and memory location change (DSI-3RMT).
DSI-3 updated features compared to the old DSI-2 model:
– 6 x faster processor
– Optical input
– Clip light
– 6 x input ( 3.2-5V ) with signal summing.
– 12 x RCA output ( 5V )
– 31-band parametric equalizer
– Built-in Bluetooth 5.0
Operating Voltage 8.7-16.5V
High-Level input impedance 240Ω
RCA input impedance 20kΩ
RCA output impedance 50Ω
RCA output voltage 0.2-5V
High-Level input S/N 105 dBA
RCA input S/N 115 dBA
High-Level input THD 0.02%
RCA input THD 0.01%
REM OUT output current 12V 500 mA
SPK input sensitivity Max 20V (CH1-4) / 40V (CH5-6)
RCA input sensitivity Max 3.2V (CH1-4) / 6.4V (CH5-6)
Turn-On 10V (REM), 1.3V(SPK/DC), 15mV (RCA)
Turn-On time 3 seconds
Input channels 6
Output channels 12
Parametric / Graphic EQ 31 Bands
Sampling Frequency 192 kHZ
Bit depth 32bit
Processing speed 295 MHz
Idle current 0.46A
Dimensions (in) 7.5 x 4.2 x 1.5
Dimensions (mm) 191 x 107 x 39.
