The SS series amplifiers represent the latest in class-D design, delivering high power and excellent sound quality in a compact package.
The SS series uses the traditional DD AUDIO style chassis for maximum cooling.
All key internal components have been upgraded to meet today’s demanding power requirements.
The SS series amplifiers are the result of a state-of-the-art, no-compromise design that delivers not only top-notch sound quality but also unprecedented power and size. The change is not only tangible, but also audible!

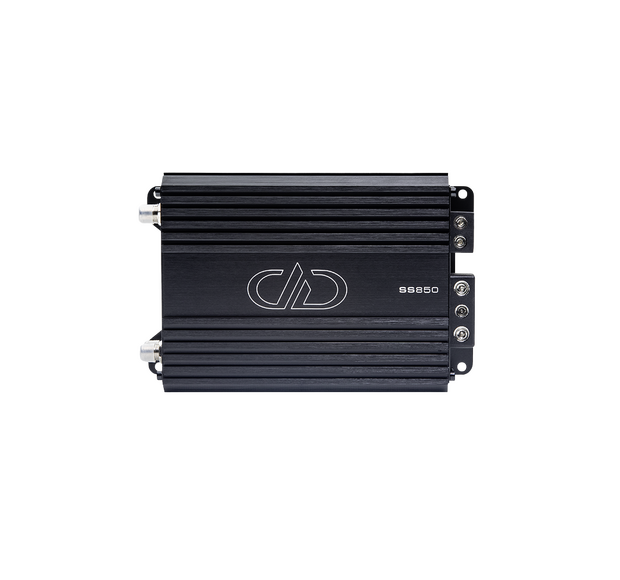

The SS850 is a 1 ohm monoblock subwoofer amplifier with a total output power of 850 watts.
Operating Voltage: 9 – 16
Test Voltage: 14.4
Input Channel(s): 2
Output Channel(s): 1
Continuous Wattage @2ohm: 575
Continuous Wattage @1ohm: 850
Max Current Draw (Amps): 90
RCA Input Voltage Sensitivity: 6 – 0.25
RCA Input S/N: 95
Damping Factor: 100
THD: 1.0%
Frequency Response (Hz): 20 – 20k
Sub-Sonic Filter: 20 – 80
Low-Pass Filter: 80 – 20k
ZVL Input: Yes
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 8
Dimensions (Inches): 5.75 x 4.6 x 2
Dimensions (MM): 141 x 117 x 50
Shipping Weight (Lbs): 4
