Description

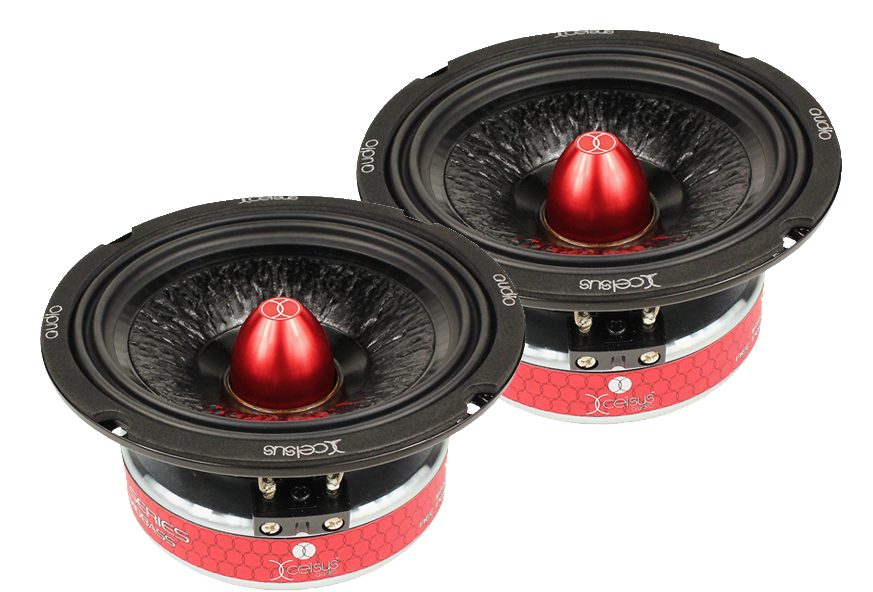

The 6.5” driver was designed around a lightweight, high-quality, non-pressed paper cone that is coupled to a 38mm high-temperature air-cooled voice coil.
Featured is a contrasting red anodized, solid billet aluminium phase plug that is attached to an oversize magnetic motor system with a copper shorting cap, allows this driver to deliver a HiFi quality sound experience at extreme volume levels.
Specifications
Impedance 4 ohm
Nominal Power (RMS) 120 W
Max / Peak Power 200 W / 300 W
Cone Material Non-pressed paper
Woofer Size 6.5″ (16.5 cm)
Magnet Size 100 mm / 4″
Sensitivity 91 dB
Mounting Depth 71 mm
Mounting Hole Diameter 145 mm
Resonant Frequency (Fs / Fo) 96.028 Hz
Moving Mass (Mms) 15.128 g
Diaphragm Mass (Mmd) 14.248 g
Mechanical Q (Qms) 6.486
Electrical Q (Qes) 0.602
Total Q (Qts) 0.551
Equivalent Compliance Volume (Vas) 4.543 L
