1-channel amplifier
1600W
1 Ohm model
Small size

Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.

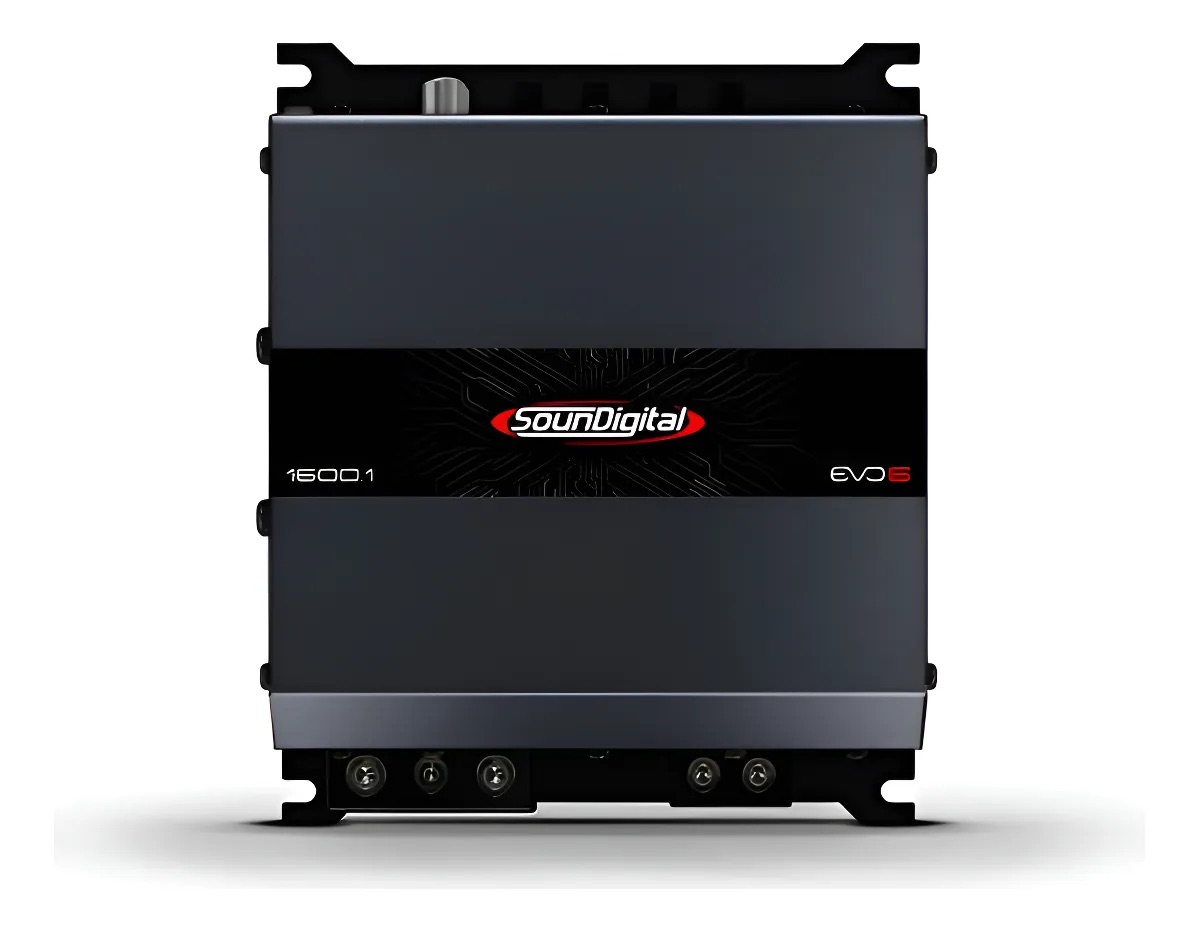

Take your audio to the next level with the SounDigital EVO6 series amplifiers – compact size and lots of power in the same package!

Never before has such high power been achieved from such small external dimensions. And at a very reasonable price!

The damping factor of all EVO 6 models is over 1000!

High power consumes a lot of power and in many cars, voltage drops are a problem at the peak of the music and when playing loudly.

SoundDigital amplifiers have taken this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way today,
ALL models are designed and manufactured in our own production facility in Brazil.
