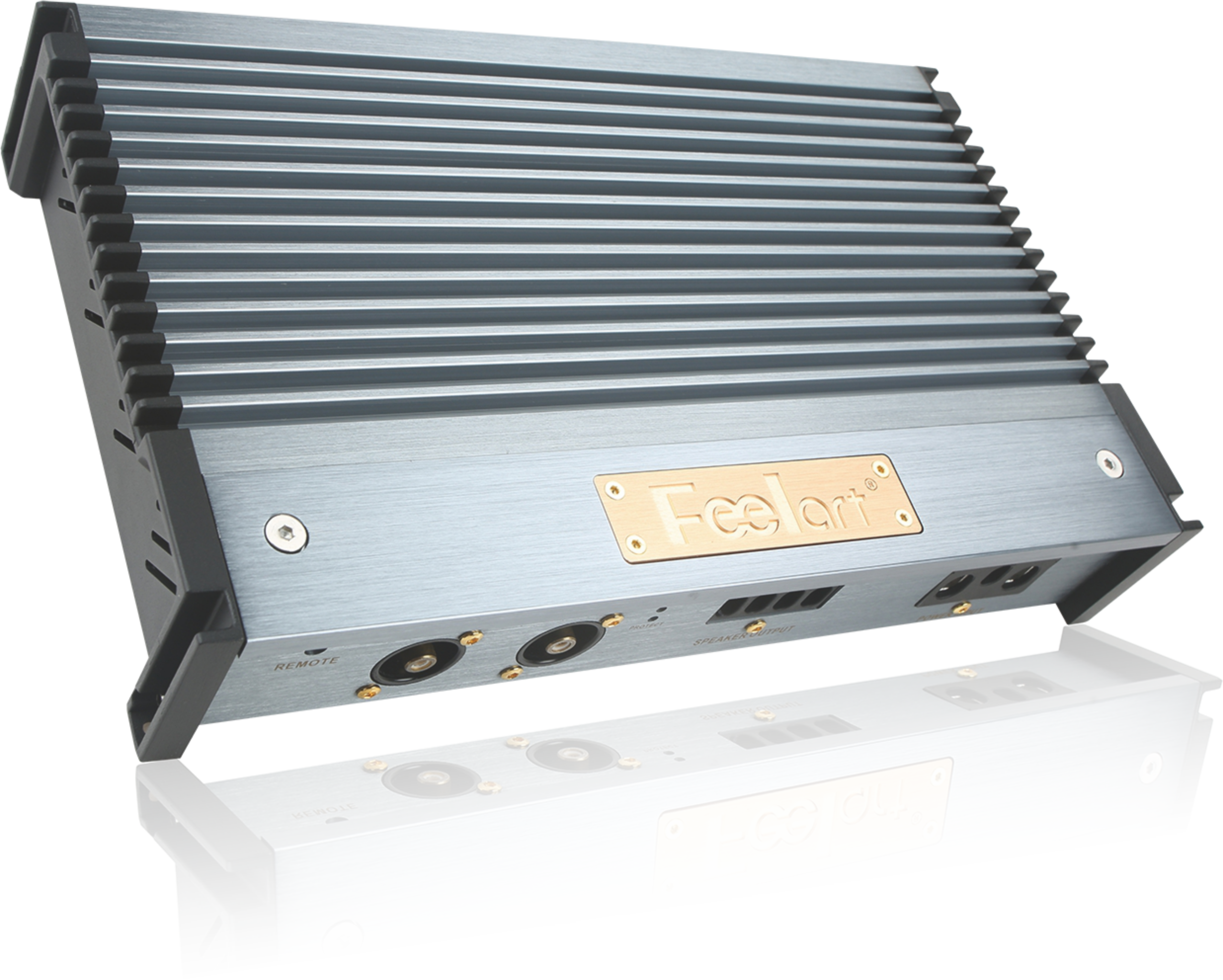

EU-1500.1

EU-1500.1

EU-1500.1(Class AB)

1 CHANNEL POWER AMPLIFIER

1.Vehicle Standard “IC”, Dual Transformer, IR Driver, ST Operational Amplifier, 24K Gold Plated RCA Terminal, and Embedded Wiring Terminals.

2. Real time current management and efficient D-class circuit design with multiple overheating protections.

3. Thick & Solid appearance.

Real time current management and multiple overheat protection circuit D-class amplifier

Design of high-end D-class power amplifier

Sensitivity of RCA input: 0.2V-8V

Rated output power(4-ohm): 850W x 1 , harmonic distortion<0.2%

Rated output power(2-ohms): 1400W x 1, harmonic distortion<0.5%

Rated output power(1-ohm): 1500W x 1, harmonic distortion<0.8%

Adjustable low-pass, with a frequency range of 40Hz -250Hz

Adjustable subwoofer filter, with a frequency range of 10-40Hz

Optional external bass control cable

Pre-output

Dimensions(LxWxH)mm:310x190x57
