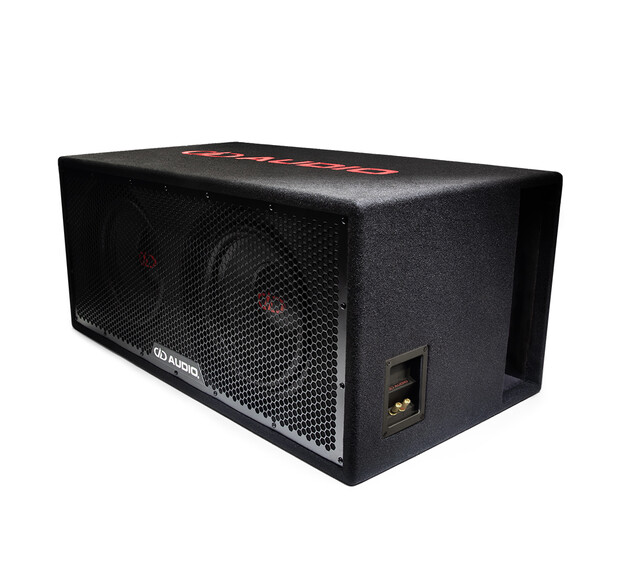

With the new a-revision of the LE-500 series, the front panels of the enclosures are now made of plywood and the subwoofers have been updated to e-series ones. The drivers included with this enclosure are 512e-D2. With the new revision, the size of the enclosure has also been reduced, and therefore its installation options are significantly more versatile
. NOTE! The drivers and enclosure come in separate packages. The enclosure package includes the necessary screws and speaker cables.
NOTE! Connect the voice coils in series and then the basses in parallel to get a 2 Ohm load.
The sturdy new generation of DD Audio ready-made enclosures offer unprecedented sound quality, sound pressure and an extremely stylish appearance!
The enclosures’ tuning frequency is sufficient to play even low frequencies.
The new enclosures have a durable metal protective grille that prevents impacts to the driver in the trunk of a car.
There is a well-flowing port on the side of the enclosure, as well as pressure terminals. The enclosures’ tuning frequency: 35Hz.
The cabinets are made of durable 19mm MDF.
The LE-500 series is available in 8″, 10″, and 12″ sizes.
The 8″ cabinets are available in two different configurations: 1 and 3 elements.
The 10″ cabinets are available in two different configurations: 1 and 3 elements.
The 12″ cabinets are available in two different configurations: 1 and 2 elements.
Features:
¾” MDF Construction
Double Layer Front Baffles
Internal Bracing
Glue Cleated Internal Joinery
High Flow 35Hz Port Tuning
Full Hex Cut Custom Metal Grills
2.5” Voice Coil
100 oz Magnet
Enclosure size: W x H x D 773 x 410 x 510mm
Specifications:
Speaker Size (In): 2 x 12
Speaker model: 512e-D2
Watts RMS: 1400
Watts Peak: 4200W
Impedance: 2 Ohm ( series wiring )
VCD (In): 2.5
Dimensions ( cm ): 41 H x 77.3 W x 51 D
