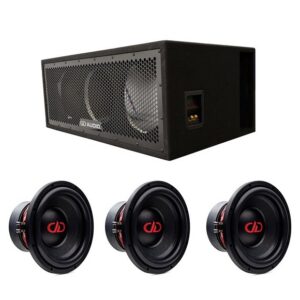

A bass enclosure that contains 3 DD Audio PSW 10″ subwoofers, as well as a really stylish DD Audio UE-10.3a ready-made enclosure.
The subwoofers and enclosure come in separate packages.
By connecting the elements in parallel, the nominal ohms will be 2.67.
The REDLINE PSW (power) series subwoofers are a more robust version of the REDLINE SW series subwoofers. The REDLINE PSW subwoofers have been improved in all areas compared to the REDLINE SW series: – Larger voice coil – Better power endurance – Longer Xmax – Larger magnet – MORE Bass!
The enclosure is upholstered in black felt and has the DD-Audio logo on the top. There is a durable metal protective grille on the front that prevents impacts to the element in the trunk of a car.
On the side of the enclosure there is a well-flowing port and pressure terminals. The enclosures’ tuning frequency: 35Hz. The enclosures are made of durable 19mm MDF board (front panel plywood).
Enclosure volume 80L
DDRL-PSW10-D4:
Speaker size: (in) 10
Watts RMS: 400
Watts peak: 800
Impedance: D4
VCD: (in) 2.5
Piston diameter: (in) 8
FS: (Hz) 38
Qms: 5.114
Qes: 0.693
Qts: 0.61
Vas: (liters) 17.73
dBSPL: 85
Xmech: (mm) 27
Xmax: (mm) 13
Frame OD: (in) 10
Frame OD w/Gasket: (in) 10.15
DDUE-10.3a:
Ported enclosure for 3×10″ subwoofer
Net volume: 80 liters.
Tuning frequency: 35 Hz
Diameter of speaker hole: 227mm
Measurements cm: ( W x H x D ): 875 x 340 x 500
