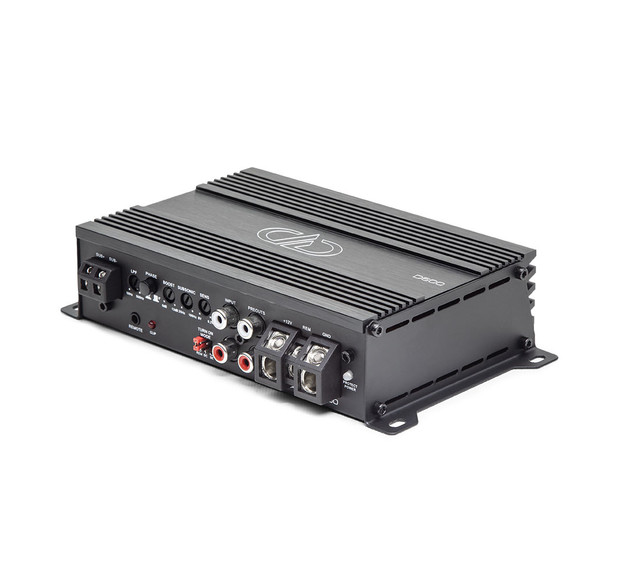

The D-series amplifiers are compact amplifiers with full-size features.
The D600 is a 1 ohm monoblock subwoofer amplifier with a total output power of 600 watts.
Adjustment is made easy with the filters in use, as well as a clip light.
Installation is made easier by the controls and connections placed on the same side, input mode switches and automatic start options.
Suitable for boats, motorcycles, ATVs, etc. The coated internal circuits and corrosion-resistant switches offer better moisture resistance.
Although the D-series amplifiers are very compact, they still have screw terminals and speaker terminals, separate output sections and sturdy anodized aluminum heat sinks.
This ensures that the power management is correct from input to output, which increases both operating stability and long-term durability.
Operating Voltage:9 – 16
Test Voltage:14.4
Input Channel(s):1
Output Channel(s):1
Continuous Wattage @4ohm:200 x 1
Continuous Wattage @2ohm:400 x 1
Continuous Wattage @1ohm:600 x 1
Max Current Draw (Amps):60
RCA Input Voltage Sensitivity:8 ~ 0.2
RCA Input S/N: 80dB
Damping Factor: 100
THD: 0.2%
Frequency Response (Hz):20 ~ 500
Sub-Sonic Filter:25 – 100
Low-Pass Filter:50 – 500 ( 24 dB/oct )
Pass Thru Output:Yes
Remote Control:Remote Included in Box
Power Wire Gauge:4
Speaker Wire Gauge:12
Dimensions (Inches):6.3 x 4 x 1.7
Dimensions (MM):160 x 104 x 43.
