The D-series amplifiers are compact amplifiers with full-size features.

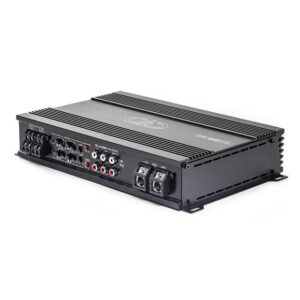

The D4.2200 is a bridgeable four-channel amplifier with a total continuous power of up to 2200W.
If you need stable power and clean sound, but don’t have a lot of extra space, this amplifier is perfect for you.
Adjustments are made easy with the filters in use, as well as a clip light.
Installation is made easier by the controls and connections placed on the same side, input mode switches and automatic start options.
Suitable for boats, motorcycles, ATVs, etc. The coated internal circuits and corrosion-resistant switches offer better moisture resistance.
Although the D-series amplifiers are very compact, they still have screw terminals and speaker terminals, separate output sections and sturdy anodized aluminum heat sinks.
This ensures that the power management is correct from input to output, which increases both operating stability and long-term durability.
Operating Voltage: 9 – 16
Test Voltage: 14.4
Output Channel(s): 4
Continuous Wattage @4ohm: 200 x 4 / 700 x 2
Continuous Wattage @2ohm: 370 x 4 / 1040 x 2
Continuous Wattage @1ohm: 550 x 4
Max Current Draw (Amps): 220
RCA Input Voltage Sensitivity: 8 ~ 0.2
RCA Input S/N: 85dB
Damping Factor: 100
THD: 0.2%
Frequency Response (Hz): 20 – 25k
High Pass Filter: 30 – 5k
Low-Pass Filter: 50 – 5k
ZVL Input: No
Pass Thru Output: Yes
Power Wire Gauge: 2
Speaker Wire Gauge: 16
Dimensions (Inches): 10.5 x 7 x 2
Dimensions (MM): 268 x 177 x 54
