The new 700f series offers a selection of DD AUDIO’s robust subwoofers with exceptional power handling and therefore suitable for even the most demanding use!
HEAT TRANSFER The
″F″ series subwoofers are designed to significantly improve heat transfer. The two-stage aluminum cooling element conducts heat away from moving parts together with the ″Free Flow Cooling System″ significantly better than a traditional motor structure.
MORE XMAX
Compared to the old d-series, the top plate and voice coil of the elements have been increased, which means that the model series offers an even larger range of motion = MORE BASS!
With the increased range of motion, the element suspensions have also been designed to meet new requirements. Higher upper suspension, which is attached to the cone with double stitching. Multi-layered lower suspension guarantees better control, tighter bass and longer durability for the element.
The new Redline 700f series is available with 2×2 or 2×4 ohm voice coils. The coil diameter is 3″. 10″, 12″ and 15″ elements are available.

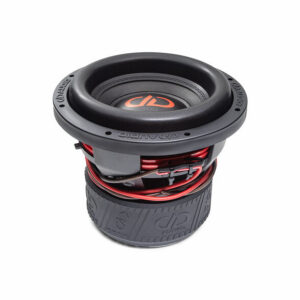

– 10″ subwoofer
– 3″ voice coil wound of Made in USA wire
– 2x 2 ohms
– alucast frame with dd-logos
– power handling 1500 W RMS, 4500 W Peak
– weight: N/A
– mounting diameter: 236.5 mm
– mounting depth: 193.6 mm
– x-mech: 84 mm
– x-max: +- 22 mm
– fs: 33.11 Hz
– qts: 0.3714
– left: 16.5 Liter
– recommended ported enclosure: 35-42 liter ( NET )
– recommended sealed enclosure: N/A
