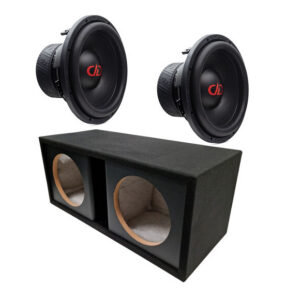

BASSKIT DD 612F includes 2pcs DD Audio 612f-D2 subwoofers and a sturdy 4-AI212SLOT cabinet.
DD Audio 612F D2:
The new 600f series offers a selection of DD AUDIO’s most popular subwoofers, which have been specially designed for excellent power handling and are therefore suitable for even the toughest daily use.
HEAT TRANSFER The
″F″ series subwoofers are designed to significantly improve heat transfer. The two-stage aluminum cooling element conducts heat away from moving parts together with the ″Free Flow Cooling System″ significantly better than a traditional motor structure.
MORE XMAX
Compared to the old d-series, the top plate and voice coil of the elements have been increased, which means that the model series offers an even larger range of motion = MORE BASS!
With the increased range of motion, the element suspensions have also been designed to meet new requirements. Higher top suspension, which is attached to the cone with double stitching. Multi-layered under-hanging ensures better control, tighter bass and longer durability.
FOUR Audio 4-AI212SLOT:
The renewed 4-AI212SLOT is an ISO enclosure made of MDF board. The large port with rounded ends flows well.
The enclosure is upholstered with black felt, and the front panel has carbon fiber-look tape. The enclosure has a connector terminal with cable.
Enclosure dimensions: width 930mm x height 380mm x depth 400mm
DD Audio 612f
– 12″ subwoofer
– 2.5″ voice coil wound of Made in USA wire
– 2x 2 ohms
– alucast frame with dd-logos
– power handling 1000 W RMS, 3000 W Peak
– weight: N/A
– mounting diameter: 292.1mm
– mounting depth: 187 mm
– x-mech: 60 mm
– x-max: +- 22 mm
– fs: 31 Hz
– qts: 0.4075
– left: 81.16 Liter
– recommended ported enclosure: 49-78 liter ( NET )
4-AI212SLOT
Ported enclosure for 2×12″ subwoofer
Net volume: 2×40 liters.
Port area: 350 cm2
Port height: 350mm
Port width: 100mm
Tuning frequency: 38 Hz
Diameter of speaker hole: 285mm
Measurements ( W x H x D ): 930 x 380 x 400.
