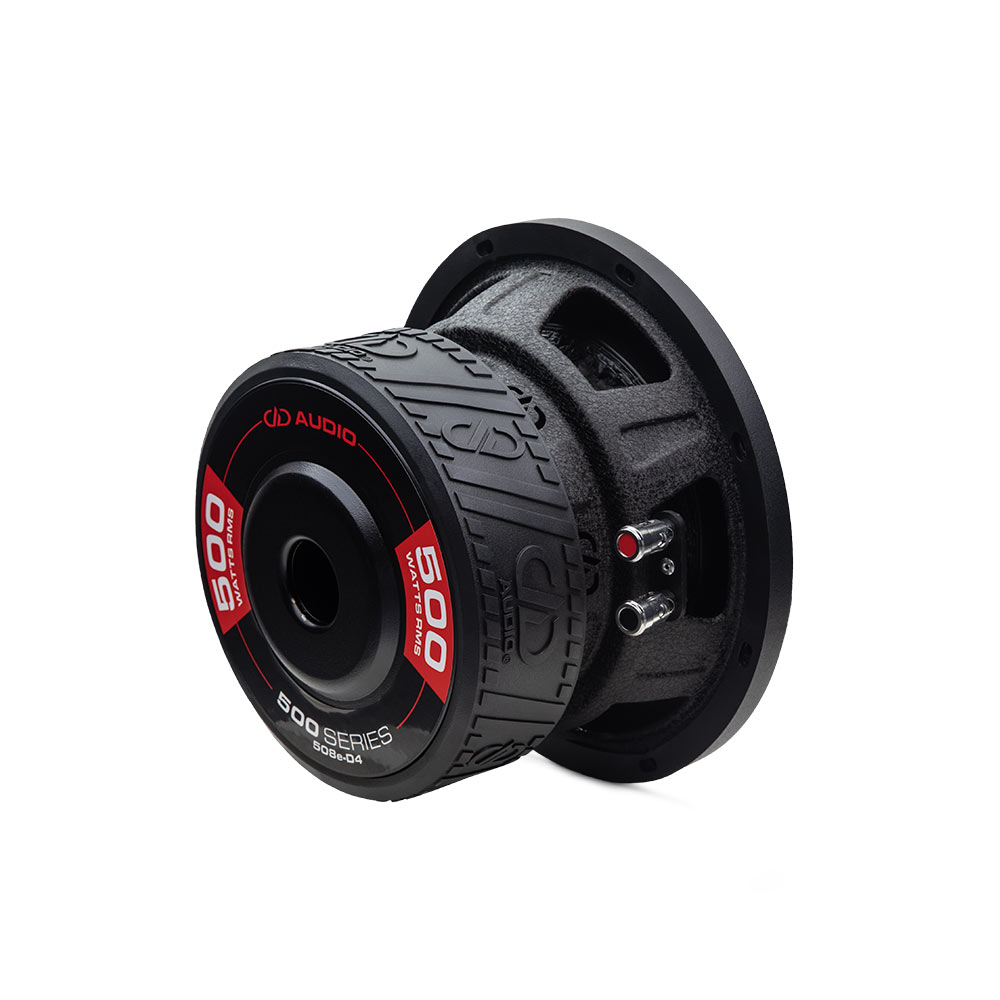

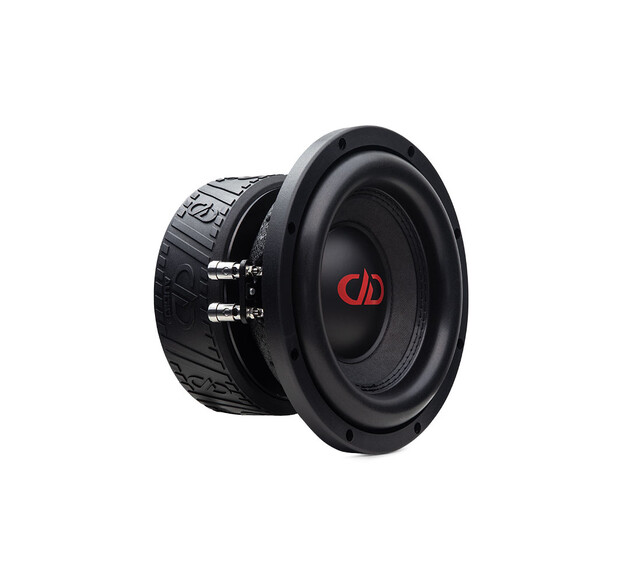

DD Audio 508e-D4
EAN: 0850054251695 DD508e-D4
8″ Subwoofer
Steel frame
2.5″ voice coil
2 x 4 Ohms
1500W
The new 500e series DD Audio subwoofers have been updated to meet today’s demands and now deliver MORE BASS!
New features include: fiberglass reinforced uncompressed paper cone, larger top mount, 50% more travel, multi-layered bottom mount, new chassis and magnet
With the new features, the 500e series offers a price / quality ratio that has not been possible before!
Enclosure recommendation: 14 – 28L reflex
Speaker Size (In): 8
Watts RMS: 500
Watts Peak: 1500
Impedance: D4
VCD (In): 2.5
Fs (Hz): 44
Qms: 5.01
Qes: 0.82
Qts: 0.71
Vas (Liters): 4.19
BL (TM): 24
Xmech (MM): 22
Xmax (MM): 14
Frame OD (In): 8.25
Frame OD w/ Gasket (In): 8.375
Mounting Diameter (In): 7.125
Mounting Depth (In): 4.875
Motor Diameter (In): 6.125
Motor Depth (In): 2.5
Magnet Weight (Oz): 100
Woofer Displacement (CuFt): 0.04
Ported Enclosure (CuFt): 0.5 – 1.0
Shipping Weight (Lbs): 14
